$1049 inc gst

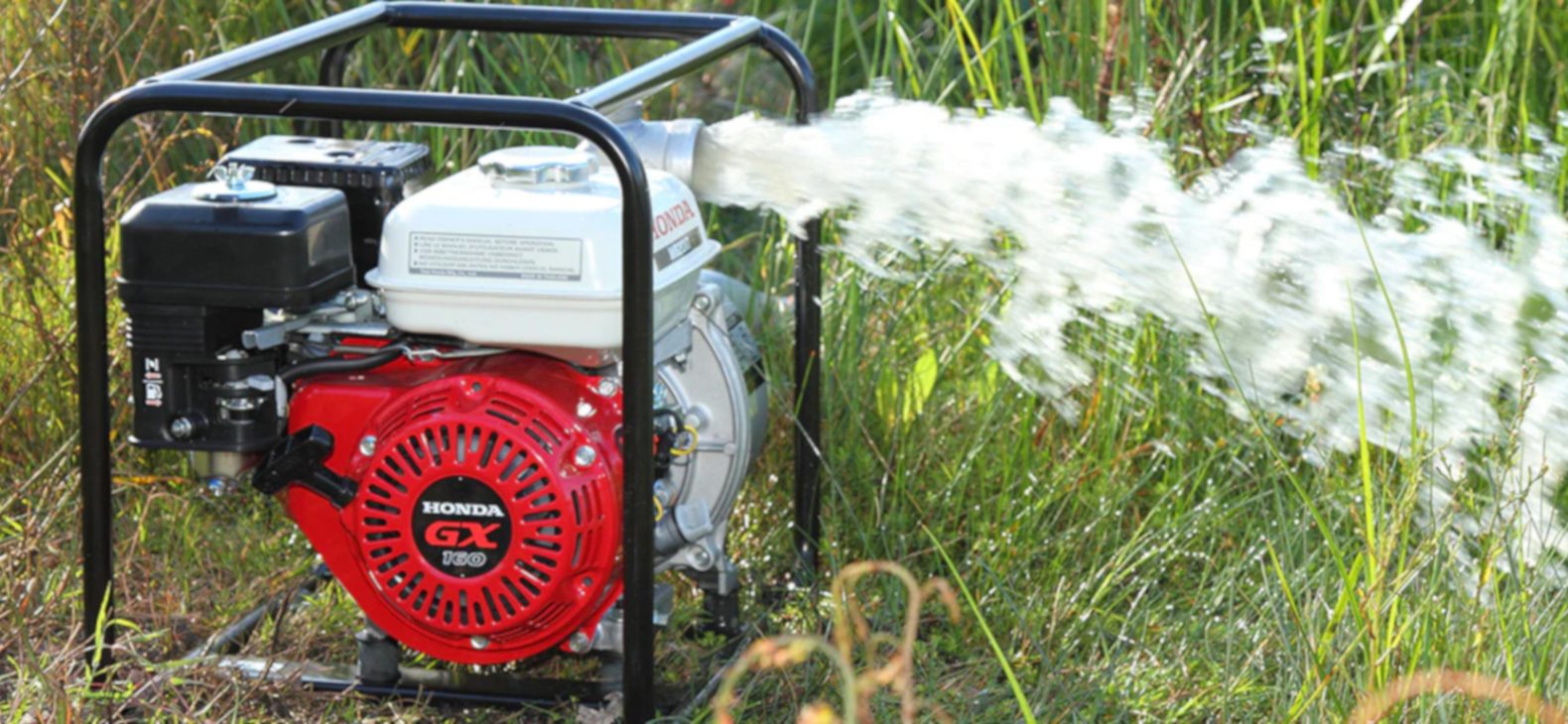

WB30 WATER PUMP

STRONG & POWERFUL

A truly impressive pump, the WB30XT volume water pump has been designed with the end-user in mind, for whatever project its needed for.

Drawing on decades of engineering advancements, the Honda 4-Stroke GX160 engine that powers the WB30XT ensures easy starting, functionality, outstanding fuel economy, low emissions and long-lasting durability.

With oil alert and rubber mounts, the full frame type provides stability and delivers smooth running with less vibration. The result is a reliable, long-lasting pump that will perform day in, day out.

1,100L/MIN PER MINUTE

With capacity to deliver 1,100 litres per minute, this 3″ Volume Water Pump has a maximum suction head of 8m and a maximum total head of 23m.

Like so many other Honda products, the WB30 starts ‘first time every time’ with Honda’s famous one pull easy start system.

It runs on unleaded fuel, so you’ll never have to mix oil and petrol again. The result? An environmentally-friendly pump with low emissions & fuel consumption.

Powerful output – Honda GX160 engine
Cast iron volute – Reduces case wear
Oil alert system – Shuts off engine when low oil is detected
Heavy duty full frame – Added protection

Specifications

WB30 3″ WATER PUMP Image

Engine

Product Code

WB30XT3DRXU

Pump Type

Centrifugal Volume Pump

Engine

GX160

Displacement

163cc

Oil Alert

Yes

Fuel

Unleaded

Total Head (m)

23

Suction Head (m)

7.5

Max Discharge Capacity

1100 litres/min

Self Priming Time (at 5m)

150 sec

Fuel Consumption

1.9 l/hr

Mounting

Rubber

Hose Band/Stainer

Yes

Fuel Tank Capacity

3.1l

Discharge Port Diameter (mm)

80

Suction Port Diameter (mm)

80

Length (mm)

510

Width (mm)

385

Height (mm)

455

Dry Weight (kg)

27
