Starting from $21,787 inc gst
This model is our dedication to offering a premiere no-compromise work ATV.

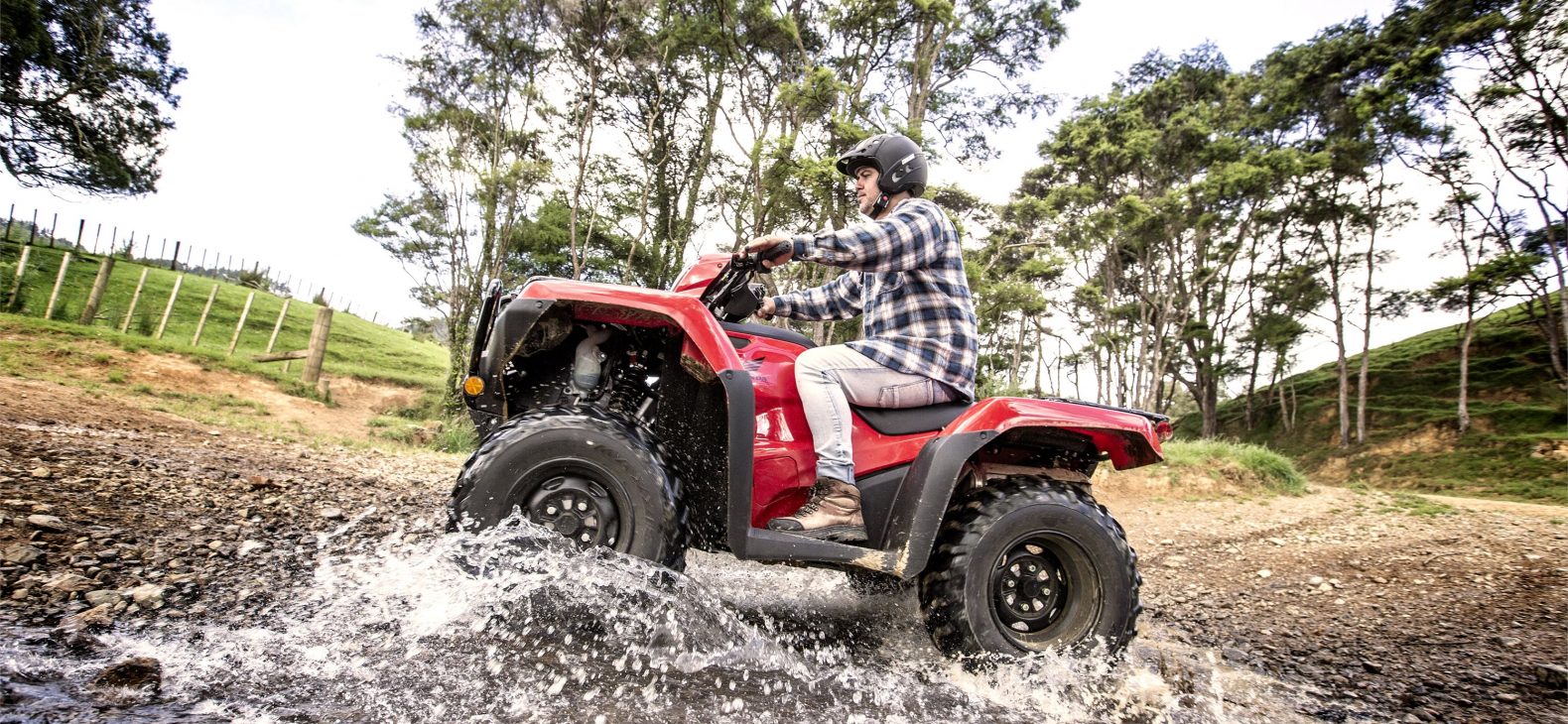

Equipped with a larger 518cc engine, the new TRX520FM2 is stronger, more powerful, and easier to use than its predecessor.
The new motor and updated mapping provides more power and torque where it’s used most – in the low end and midrange – to allow quicker acceleration, better ascending and improved hauling and towing. The Honda TraxLok system allows you to move between 2WD and 4WD mode with just the flick of a switch. Front diff lock maximises traction over very rough terrain. The TRX520FM2 boasts new styling, an even more powerful assist headlight and increased storage compartments.
Elsewhere, the swing arm-style rear suspension is tried and proven on New Zealand farms, easily serviceable and with less moving parts it’s made for durable running in harsh conditions. Towing is made more comfortable by moving the tow hitch onto the swing arm. A bulletproof manual machine loved by Kiwis, the TRX520FM2 is set to become NZ’s new favourite ATV.
Specifications
ENGINE
Engine Type
Liquid-cooled OHV longitudinally mounted single-cylinder, 4 stroke
CC Rating
518cc
Bore and Stroke
96.0mm x 71.5mm
Ignition
Full-transistorised with electronic advance
Fuel System
Programmed Fuel Injection (PGM-FI) 36mm throttle body
Compression Ratio
9.5:1
TRANSMISSION
Starter
Electric with auxiliary recoil standard
Final Drive
Direct front and rear driveshafts w/ TraxLok® and locking front differential
Transmission
Manual 5-speed with reverse
WHEELS, SUSPENSION & BRAKES
Suspension Front
Independent double wishbone – 185mm of travel
Suspension Rear
Swing arm with single shock – 185mm of travel
Brakes Front
Dual hydraulic – 190mm discs
Brakes Rear
Single sealed – 160mm mechanical drum
Tyres Front
25 x 8 – 12
Tyres Rear
25 x 10 – 12
DIMENSIONS & WEIGHT
Wheelbase
1,269mm
Seat Height
877mm
Ground Clearance
190mm
Kerb Weight
297kg
Fuel Capacity
14.7litres incl 4.9litres reserve
Dimensions
2106mm(L) x 1205mm(W) x 1213mm(H)
Carrier Capacity
40kg Front rack – 80kg Rear rack
Towing Capacity
385kg
Features
Engine capacity
New larger displacement 518cc engine (a 43cc displacement increase) with updated mapping provides stronger power and torque where it’s used most—in the low end and midrange—for quicker acceleration, better ascending and improved hauling and towing.
Utility Box
A 1.9-litre utility box with weatherproof cover is added to the front deck.
A Arm guards
New guards extend the full length of the lower suspension arms for full coverage of the driveshaft and outboard CV joints.
