Starting from $18,395 inc gst

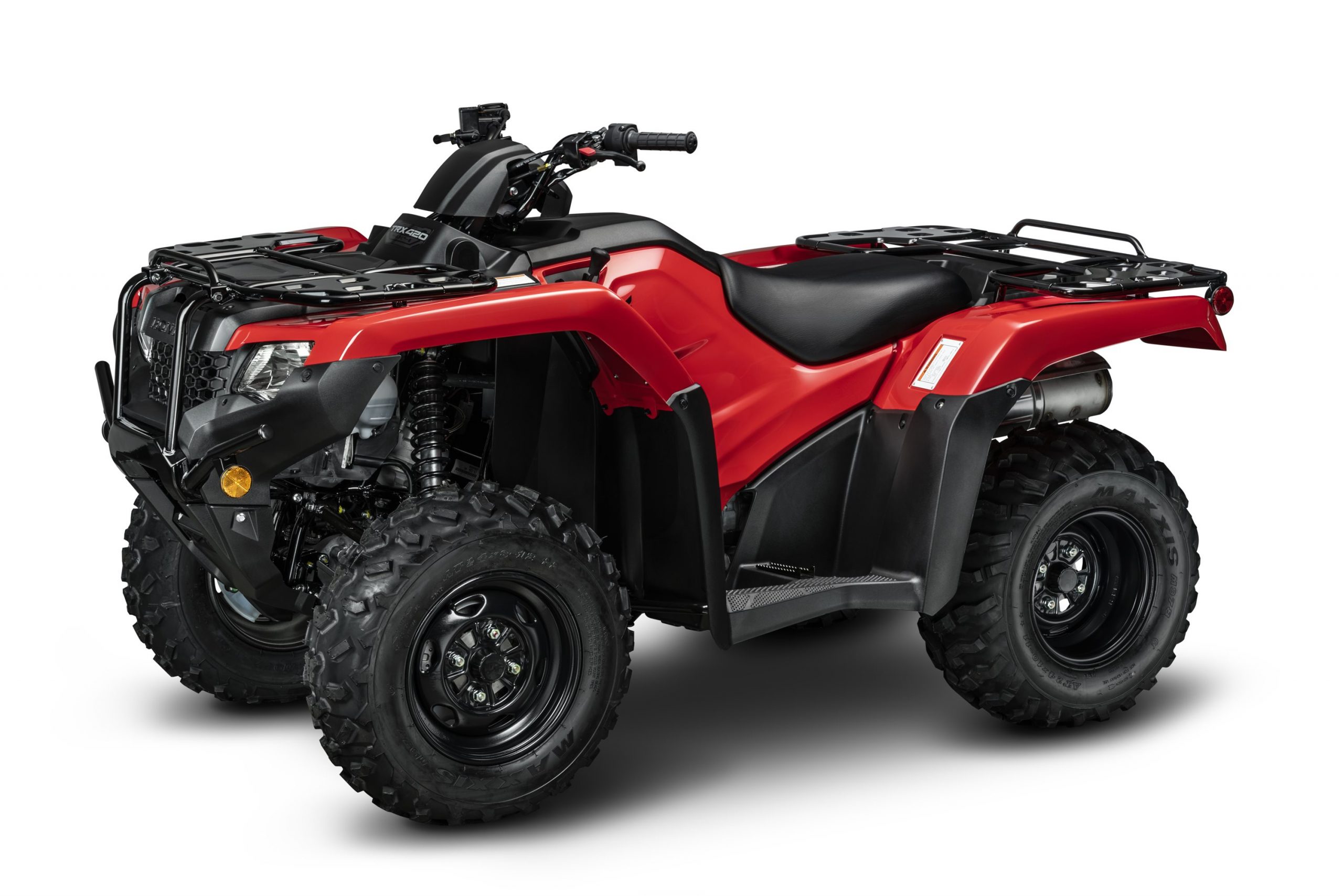

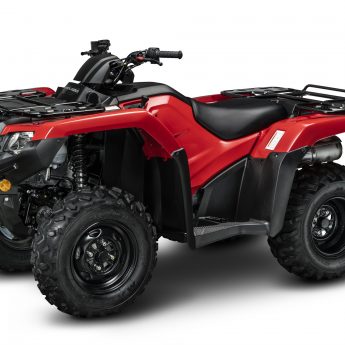

The TRX420FM2 is one of New Zealand’s favourite ATVs for a reason.
It has all the great features of the FM1 model with the addition of power steering. The Electronic Power Steering (EPS) system uses the latest technology, incorporating Electronic Computer Unit (ECU) mapping for improved linearity in steering response and reduced low-speed steering effort for enhanced maneuverability. The increased kickback resistance provides better all-around steering action and control over rough terrain. Elsewhere, the stiffness of the double-cradle steel frame allows for precise handling and 170mm of travel in both the front and rear suspension systems ensures a plush and controlled ride. New for this year is a storage compartment on the front of the bike and revised carry racks which provide more loading options. New guards extending the full length of the lower suspension arms provide full coverage of the driveshaft and outboard CV joints. This is one tough, economical and capable ATV.
Specifications
Engine
Engine Type
Liquid cooled OHV longitudinally mounted single cylinder, 4 stroke
CC Rating
420cc
Bore and Stroke
86.5mm x 71.5mm
Ignition
Full transistorised with electronic advance
Fuel System
Programmed Fuel Injection(PGM-FI) – 34mm throttle body
TRANSMISSION
Starter
Electric with auxiliary recoil standard
Final Drive
Direct front and rear driveshafts with torque sensing front differential
Transmission
Manual 5-speed with reverse
WHEELS, SUSPENSION & BRAKES
Suspension Front
Independent double wishbone; 170mm travel
Suspension Rear
Swing arm with single shock; 170mm travel
Brakes Front
Dual hydraulic – 190mm discs
Brakes Rear
Single sealed – 160mm mechanical drum
Tyres Front
24 x 8 – 12
Tyres Rear
24 x 10 – 11
DIMENSIONS & WEIGHT
Wheelbase
1,269mm
Seat Height
854mm
Ground Clearance
181mm
Kerb Weight
286kg
Fuel Capacity
14.7litres including 4.9litres reserve
Dimensions
2,104mm(L) x 1,205mm(W) x 1,174mm(H)
Carrier Capacity
30kg Front rack – 60kg Rear rack
Towing Capacity
385kg
Features
A Arm guards
New guards extend the full length of the lower suspension arms for full coverage of the driveshaft and outboard CV joints.
Cargo Racks
Newly engineered front and rear cargo racks provide more area and accept new Honda Pro Connect accessories for smooth integration.
Utility Box
A 1.9-litre utility box with weatherproof cover is added to the front deck.
