Starting from $16,785 inc gst

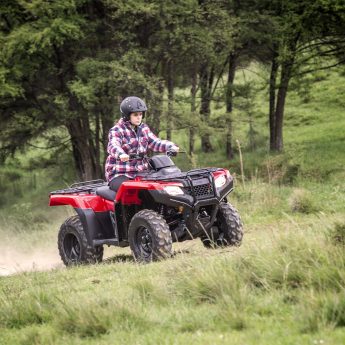

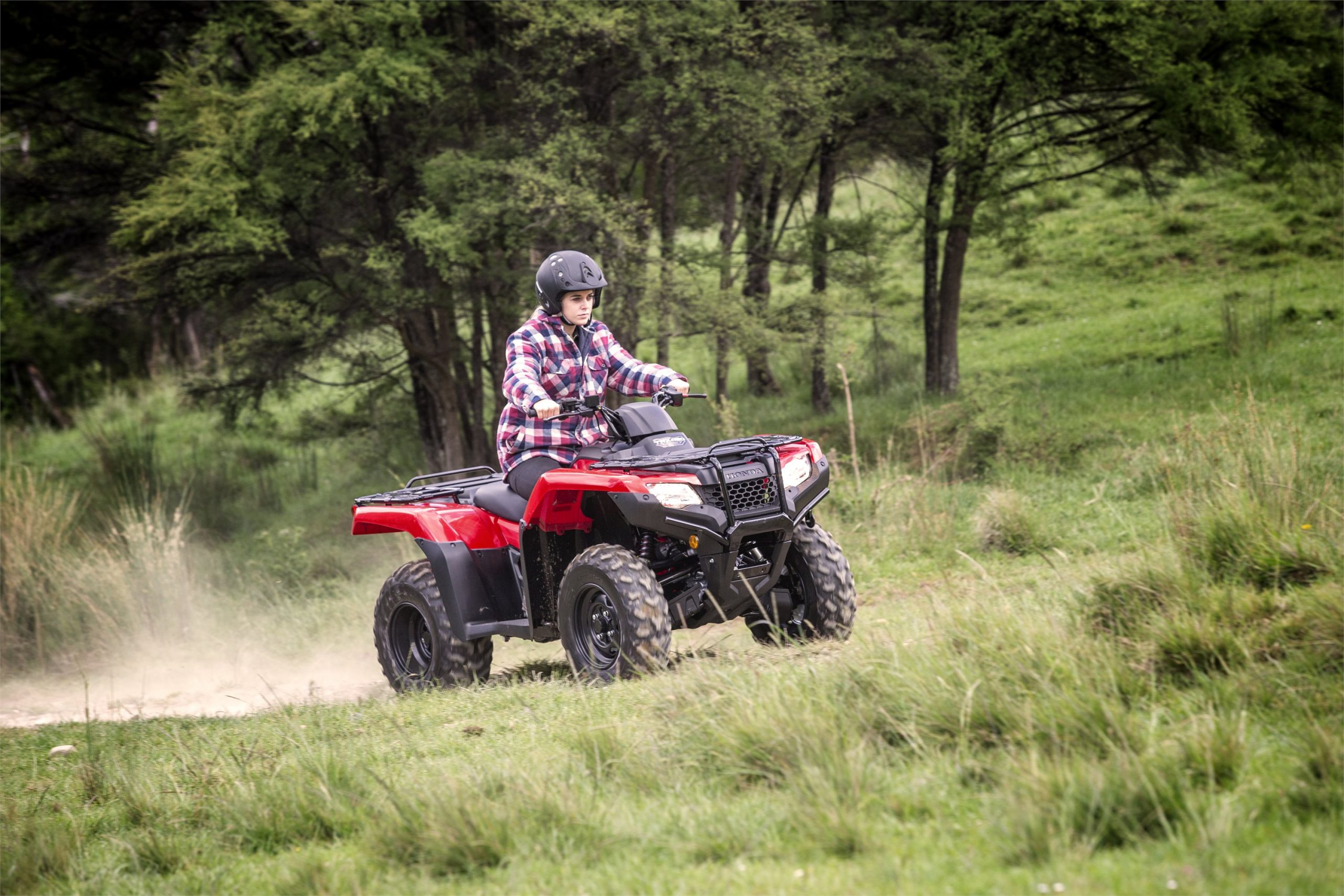

One of Honda’s most loved ATVs, the TRX420FM1 sets the benchmark for rugged durability.
With a reliable and economical 420cc engine this 4WD manual makes easy work of hilly terrain. Throttle response and economy are helped by the latest version of Honda’s Programmed Fuel Injection (PGM-FI) system. The new TRX420FM1 has revised carry racks, and a new built in front storage component which is perfect for storing keys, a phone, or similar you need to keep safe. It’s equipped with a double-cradle steel frame designed for precise handling and a smooth ride without compromising strength, 170mm of travel in both the front and rear suspension systems ensures a plush and controlled ride, and new guards extending the full length of the lower suspension arms provide full coverage of the driveshaft and outboard CV joints which helps protect the running gear of the bike and further improves the durability of this model!
Specifications
Engine
Engine Type
Liquid cooled OHV longitudinally mounted single cylinder, 4 stroke
CC Rating
420cc
Bore and Stroke
86.5mm x 71.5mm
Ignition
Full transistorised with electronic advance
Fuel System
Programmed Fuel Injection(PGM-FI) – 34mm throttle body
TRANSMISSION
Starter
Electric with auxiliary recoil standard
Final Drive
Direct front and rear driveshafts with torque sensing front differential
Transmission
Manual 5-speed with reverse
WHEELS, SUSPENSION & BRAKES
Suspension Front
Independent double wishbone; 170mm travel
Suspension Rear
Swing arm with single shock; 170mm travel
Brakes Front
Dual hydraulic – 190mm discs
Brakes Rear
Single sealed – 160mm mechanical drum
Tyres Front
24 x 8 – 12
Tyres Rear
24 x 10 – 11
DIMENSIONS & WEIGHT
Wheelbase
1,269mm
Seat Height
854mm
Ground Clearance
181mm
Kerb Weight
280kg
Fuel Capacity
14.7litres including 4.9litres reserve
Dimensions
2,104mm(L) x 1,205mm(W) x 1,174mm(H)
Carrier Capacity
30kg Front rack – 60kg Rear rack
Towing Capacity
385kg
Features
A Arm guards
New guards extend the full length of the lower suspension arms for full coverage of the driveshaft and outboard CV joints.
Cargo Racks
Newly engineered front and rear cargo racks provide more area and accept new Honda Pro Connect accessories for smooth integration.
Utility Box
A 1.9-litre utility box with weatherproof cover is added to the front deck.
