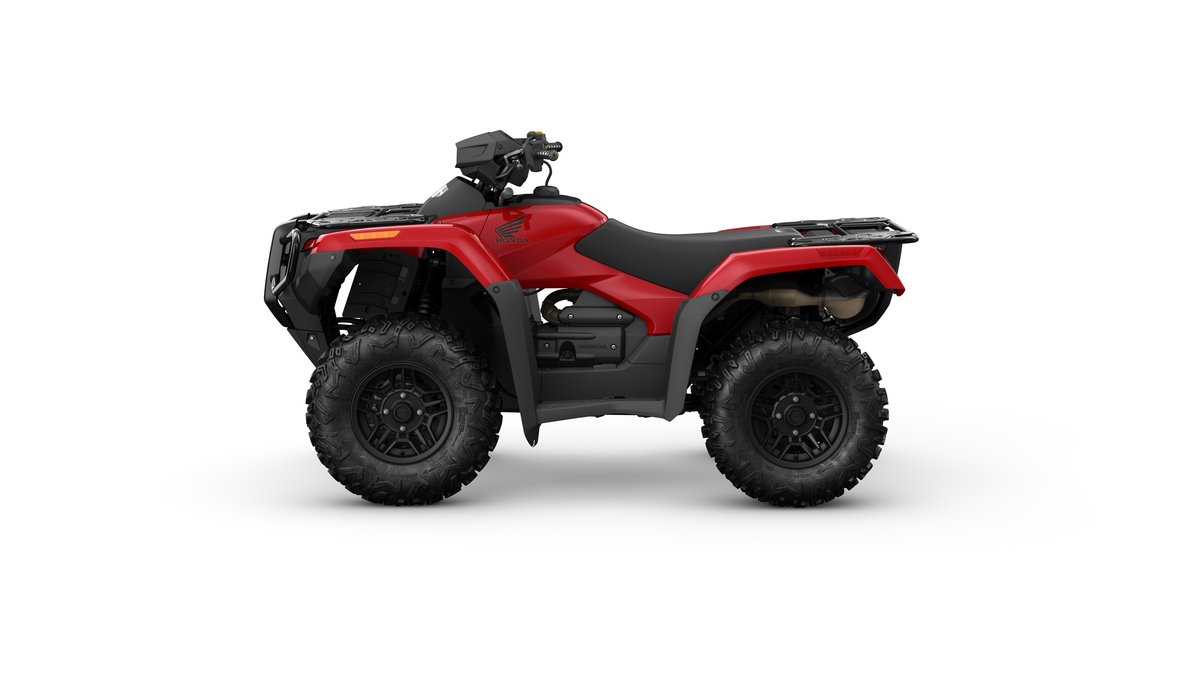

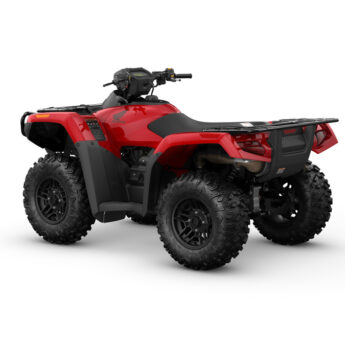

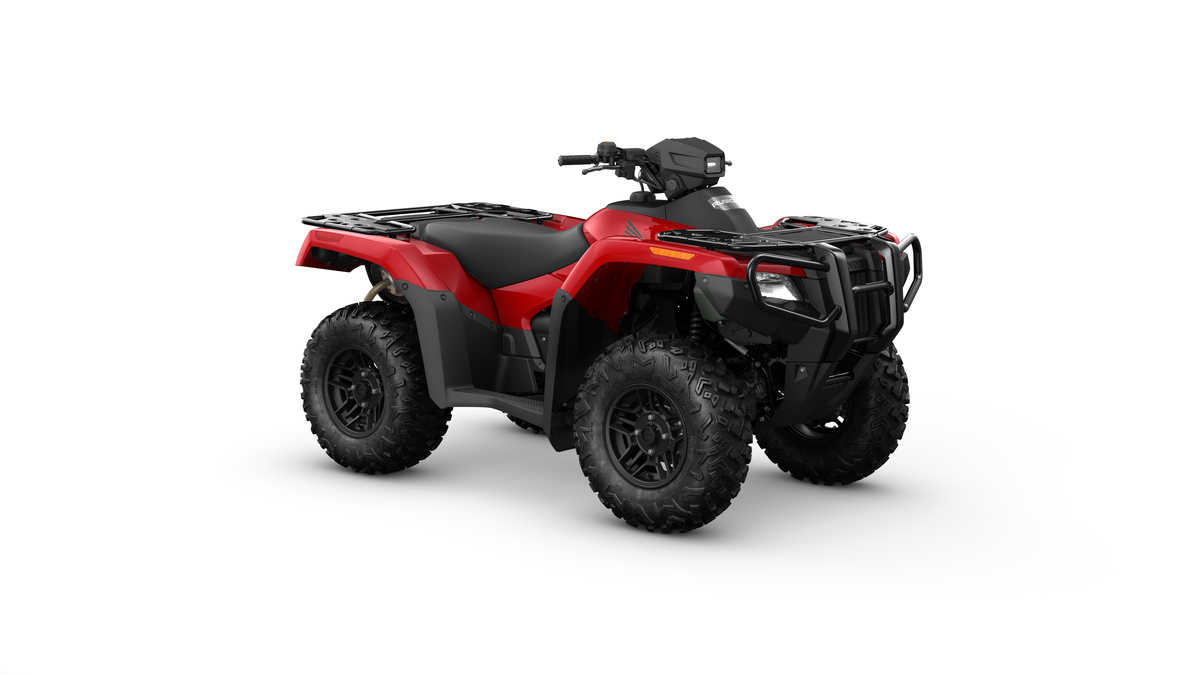

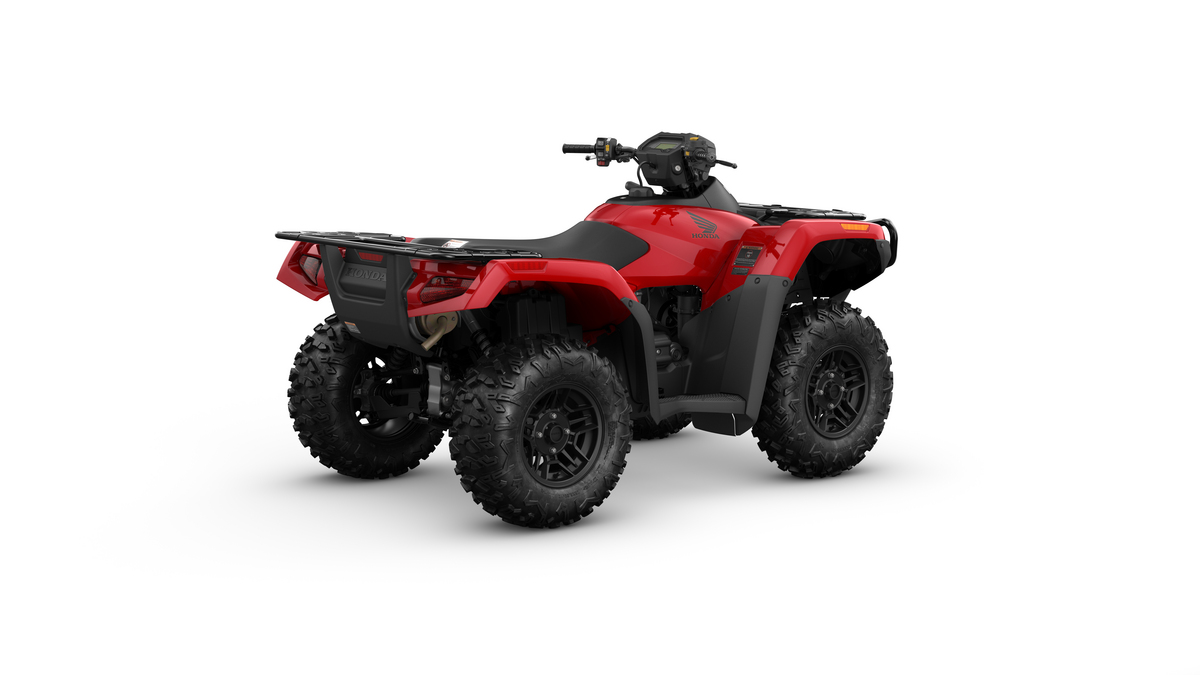

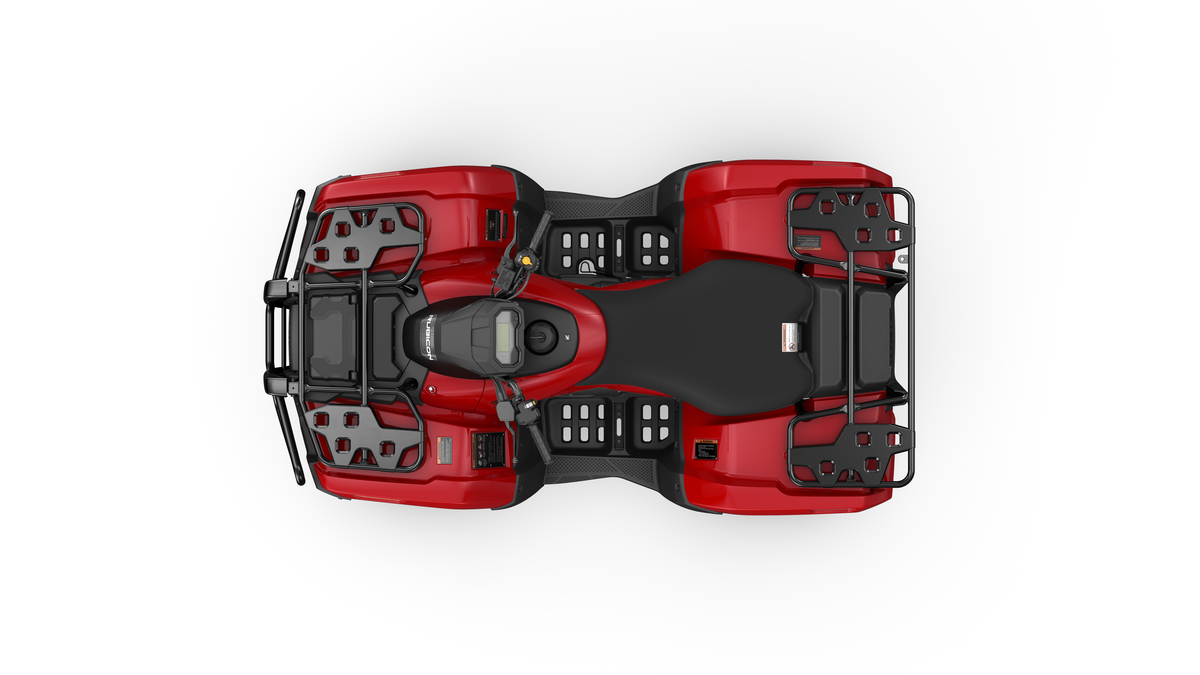

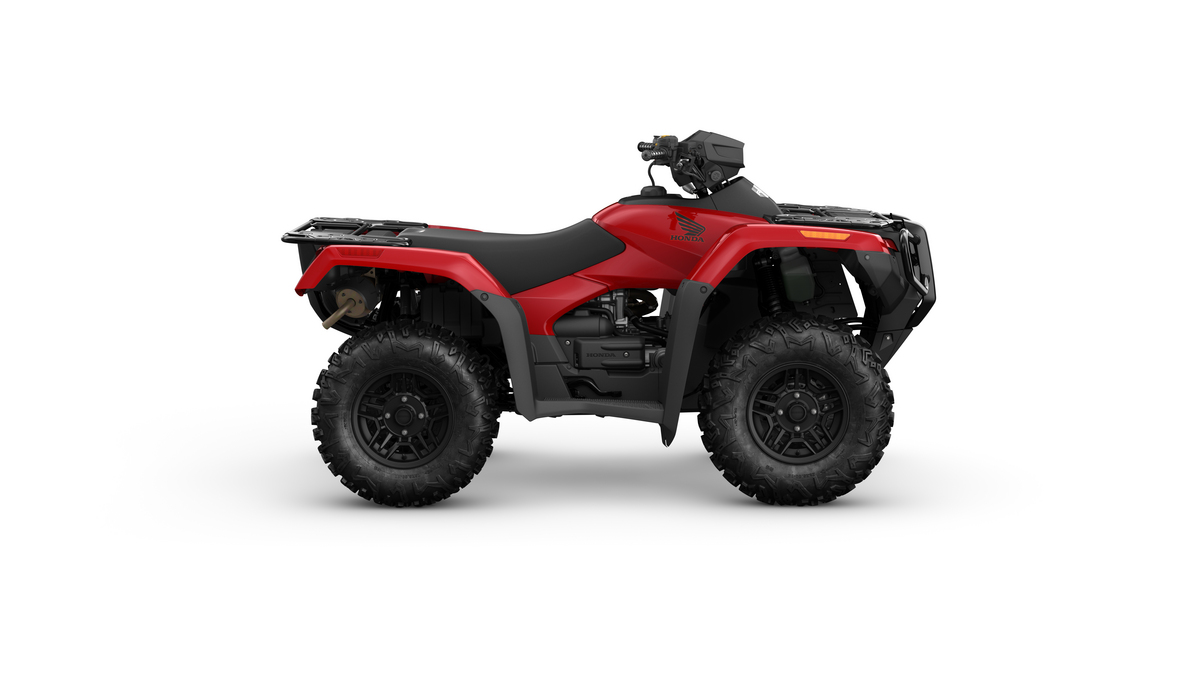

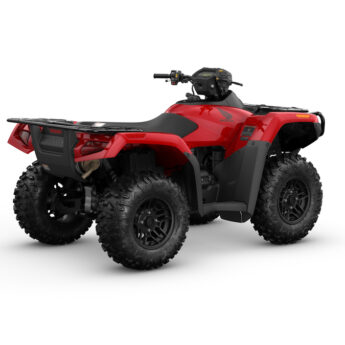

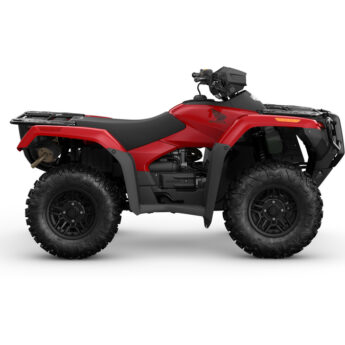

TRX700FA5

3.95% HONDA RIDER FINANCE ON NOW – ENQUIRE FOR MORE DETAILS

Starting from $20,495 exc gst

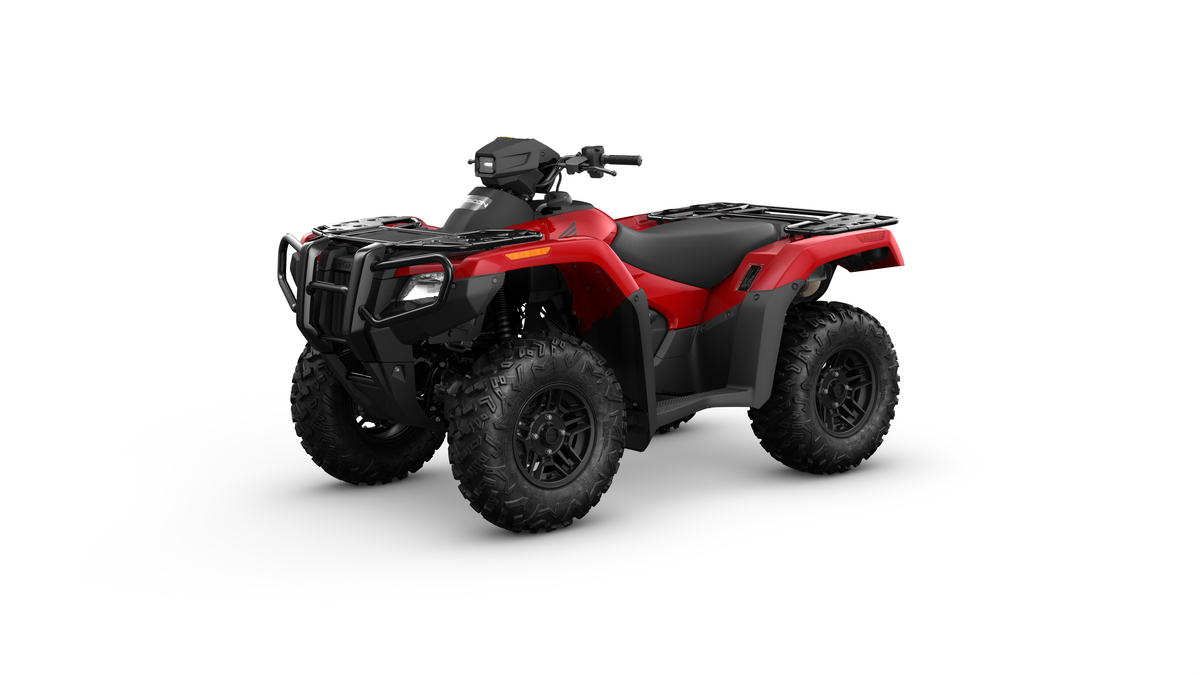

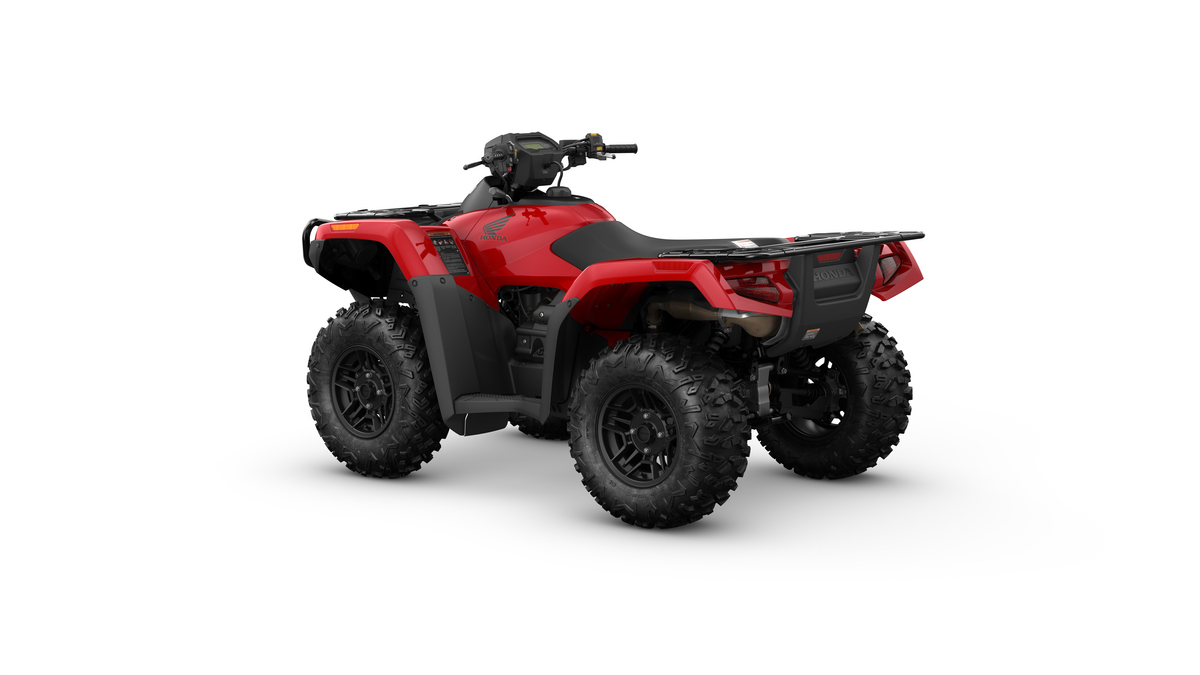

When it comes to our TRX700, there’s big news, and some big improvements too.

Check out these highlights —new, bigger 26-inch tires with a more aggressive tread pattern, mounted on new cast-aluminum wheels. New instruments with a bigger screen that’s easier to read. More integrated storage.

New racks front and rear that can carry heavier loads (50 percent more for the front and 42 percent more for the rear) and now feature our super-convenient Honda Pro-Connect® accessory quick-attach system. Updates to the automatic transmission. A bigger, tougher front bumper, and sharp new styling.

What hasn’t changed is the fact that it’s the largest-displacement ATV in our lineup—with the same engine as in our hard-working Pioneer 700 side-by-side—and it offers our smooth-shifting fully automatic transmission, selectable TraxLok® four-wheel-drive system, and fully independent rear suspension, a big part of the TRX700’s uncompromising comfort, making it perfect for all day riding.

3.95% HONDA RIDER FINANCE ON NOW – ENQUIRE FOR MORE DETAILS

Enquire now Book test drive

Specifications

ENGINE

Engine Type

Liquid-cooled OHV longitudinally mounted single-cylinder, 4 stroke

CC Rating

675cc

Bore and Stroke

102mm x 82.6mm

Ignition

Full-transistorised with electronic advance

Fuel System

Programmed Fuel Injection (PGM-FI) 36mm throttle body

Compression Ratio

9.2:1

TRANSMISSION

Starter

Electric with auxiliary recoil standard

Final Drive

Direct front and rear driveshafts w/ TraxLok® and locking front differential

Transmission

Automatic with hydraulic torque converter, 3-speed with reverse and electronic control

WHEELS, SUSPENSION & BRAKES

Suspension Front

Independent double wishbone – 175mm of travel

Suspension Rear

Independent rear suspension – dual arm – 203mm of travel

Brakes Front

Dual hydraulic – 180mm discs

Brakes Rear

Single hydraulic – 170mm disc

Tyres Front

26 x 8-12

Tyres Rear

26 x 10-12

DIMENSIONS & WEIGHT

Wheelbase

1,285mm

Seat Height

922mm

Ground Clearance

241mm

Kerb Weight

318kg

Fuel Capacity

16.6litres incl 4.5litres reserve

Dimensions

2197mm(L) x 1206mm(W) x 1219 mm(H)

Carrier Capacity

45kg Front rack – 85kg Rear rack

Towing Capacity

385kg

Enquire now

Features

Transmission

Automatic with hydraulic torque converter; three forward gears, reverse, and electronic controls

LED Lights

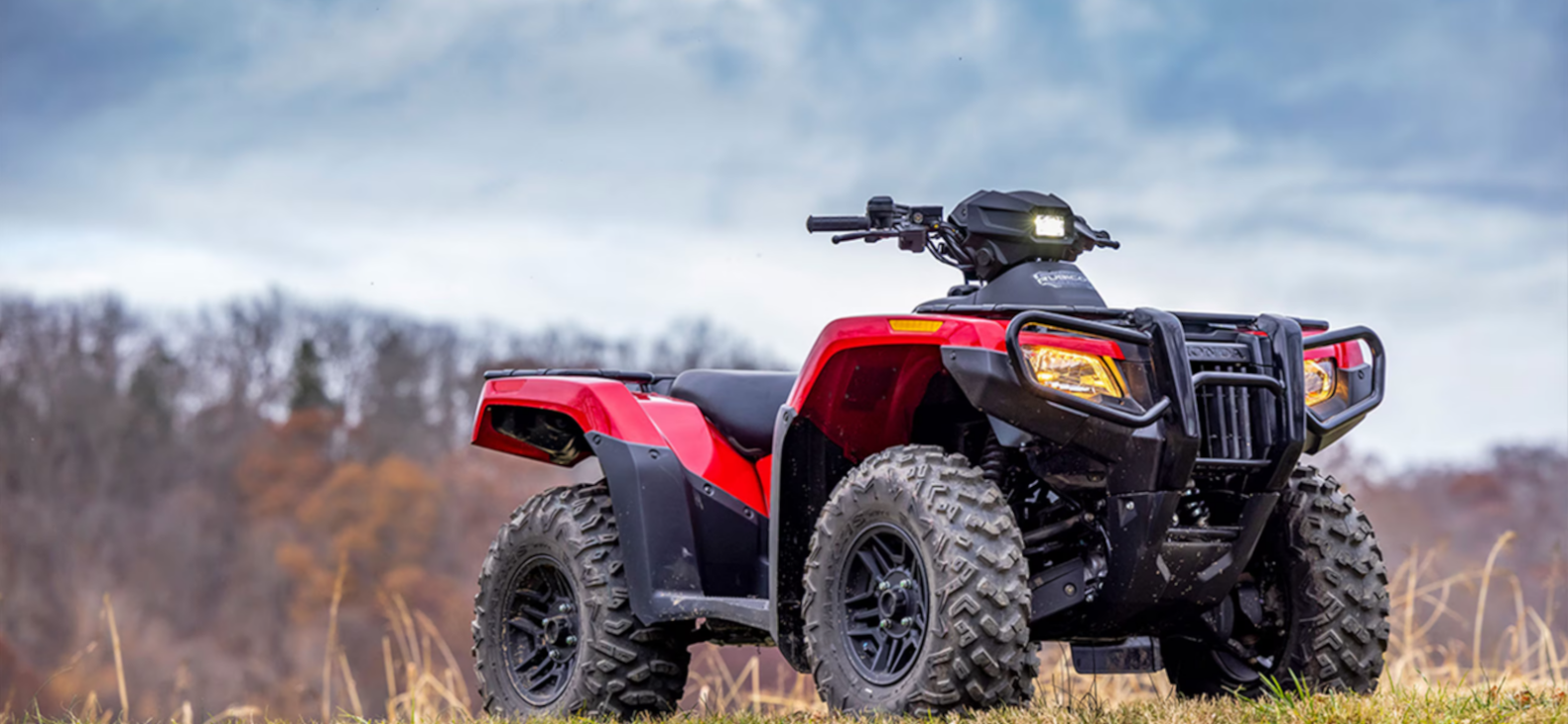

New LED Handlebar Headlight – This new, handlebar-mounted LED light is a big boost in illumination. Plus, since it moves with the handlebar, helps you see more.

Independent Rear Suspension (IRS)

An aluminium double-wishbone design delivers a precise, smooth ride over rough terrain. Independent Rear Suspension (IRS) returns two major benefits: it helps ensure constant tyre contact with the ground for superior traction and gives an ultra-smooth ride.
